HomePRODUCTSEFFECT LIGHTSFINE 1200C STROBE
FINE 1200C STROBE
OVERVIEW
FINE 1200C STROBE is a high-power, multi-functional and high bright super strobe effect light. Its maximum power reaches 1250W. The optical system consists of LED Strobe Tube and LED Strobe Panel. The LED Strobe Tube, in the centre of the fixture, is made up of 180 pieces of 10W cold-white light source and strip optical lens with the light angle of 60 degree. It is divided into 10 segments. Each segment can be controlled individually and can create various flow-water strobe effects. It can also make strong white strobe effects by the combination of white LED effect time 1, white LED effect time 2 and white LED effect. LED Strobe Panel, surrounding the LED Strobe Tube, consists of 1000 pieces of RGB LEDs with light angle of 130 degree. It is divided into 40 segments. All RGB in each segment can be controlled individually. When working as a wash light, all RGB can be controlled by master dimmer and color mixing is possible; it makes uniform light and outstanding color mixing effect. The LED Strobe Panel can be used as a RGB strobe light by the combination of three channels: RGB effect time 1, RGB effect time 2 and RGB effect; it can achieve rich light effects by changing fade in/out time, movement direction of LED tube and LED plane, shape of LED tube and LED plane, background dimming etc. It features dynamic movement with 182 degree tilt. Multiple lights can be connected horizontally to work as one light. Each light can be used as a 10*4 pixel matrix. It can create bitmap effects when connecting with multiple lights. Advanced radiation design prevents LEDs from damage when all color constantly working on full dimmer or using instant high speed strobe effect. FINE 1200C Strobe is a simple, compact, small and light weight strobe light (11 kg), which is suitable for bars, stages, dramas, concerts, online variety shows and other performance venues.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • White LED: 10W x 180 pcs LEDs,  6500k

  • RGB LED: 0.2W x 1000 pcs RGB LEDs

  • Lifespan: 50,000 Hours

  • Light Angle: 60° /110 °

  • The initial luminous flux and efficiency:58898 lm.61.28 lm/W

  • White LED: 10W x 180 pcs LEDs,  6500k

  • RGB LED: 0.2W x 1000 pcs RGB LEDs

  • Lifespan: 50,000 Hours

  • Light Angle: 60° /110 °

  • The initial luminous flux and efficiency:58898 lm.61.28 lm/W

EFFECTS
  • The flash part in the middle of the LED panel is divided into 10 parts, each section can be controlled separately.

  • The upper and lower are the dot matrix light surface which divided into 40 sections.

  • Each section RGB can be controlled separately, can be used as a pixel, can form a variety of graphic effects.

  • Optical domain dimming, 65536 dimming accuracy, highlighting output

  • Fast frequency 1-25 Hz

  • Macro and color gradient effect a variety of stroboscopic and graphic effects

  • The flash part in the middle of the LED panel is divided into 10 parts, each section can be controlled separately.

  • The upper and lower are the dot matrix light surface which divided into 40 sections.

  • Each section RGB can be controlled separately, can be used as a pixel, can form a variety of graphic effects.

  • Optical domain dimming, 65536 dimming accuracy, highlighting output

  • Fast frequency 1-25 Hz

  • Macro and color gradient effect a variety of stroboscopic and graphic effects

MOVEMENT PARAMETER
  • Tilt: 182 °, accuracy of 0.94 °/ step, fine-tuning 0.0037°

  • Tilt: 182 °, accuracy of 0.94 °/ step, fine-tuning 0.0037°

CONTROL AND PROGRAMMING
  • Control channel: 23(Stand)/ 138(RGB)/16(SIMP)/8+130(RGB) /61(PixDim)

  • Protocol: DMX512, ArtNet, sACN

  • DMX Connector: 3-pin XLR input/ output(5-pin for option), RJ45 input/output

  • Control channel: 23(Stand)/ 138(RGB)/16(SIMP)/8+130(RGB) /61(PixDim)

  • Protocol: DMX512, ArtNet, sACN

  • DMX Connector: 3-pin XLR input/ output(5-pin for option), RJ45 input/output

ELECTRONIC CONTROL TECHNOLOGY
  • Fixture reset by menu or console controlling

  • 0-100% dimmer

  • Setting of dimming curve

  • Constant current drive mode

  • Temperature sensor detection,intelligent adjustment for light source power

  • DMX channel level monitoring

  • Fixture information query

  • Intelligent fan adjustment

  • RDM data bidirectional transmission

  • Built in charging LiMH battery, then the menu can be edited without power

  • Fixture reset by menu or console controlling

  • 0-100% dimmer

  • Setting of dimming curve

  • Constant current drive mode

  • Temperature sensor detection,intelligent adjustment for light source power

  • DMX channel level monitoring

  • Fixture information query

  • Intelligent fan adjustment

  • RDM data bidirectional transmission

  • Built in charging LiMH battery, then the menu can be edited without power

POWER SUPPLY
  • Input voltage: 100-240V~,50/60Hz

  • Input power: 1250W

  • Power Factor: 0.98

  • Input voltage: 100-240V~,50/60Hz

  • Input power: 1250W

  • Power Factor: 0.98

DIMENSION AND WEIGHT
  • Fixture Dimension:  391 x 152 x 291mm

  • Package Dimension:

    904 x 636 x 522mm (flight case)

    510 x 460 x 300mm (carton)

  • Net Weight: 11 kg (fixture)

  • Gross Weight:

    86.8 kg (flight case)

    15 kg (carton)

  • Fixture Dimension:  391 x 152 x 291mm

  • Package Dimension:

    904 x 636 x 522mm (flight case)

    510 x 460 x 300mm (carton)

  • Net Weight: 11 kg (fixture)

  • Gross Weight:

    86.8 kg (flight case)

    15 kg (carton)

PACKAGE
  • 4 sets / flight case

  • 1 set / carton

  • 4 sets / flight case

  • 1 set / carton

INSTALL
  • Direction: any

  • Hanging: standard handing

  • Safety: safety rope

  • Direction: any

  • Hanging: standard handing

  • Safety: safety rope

IP RATE
  • IP 20

  • IP 20

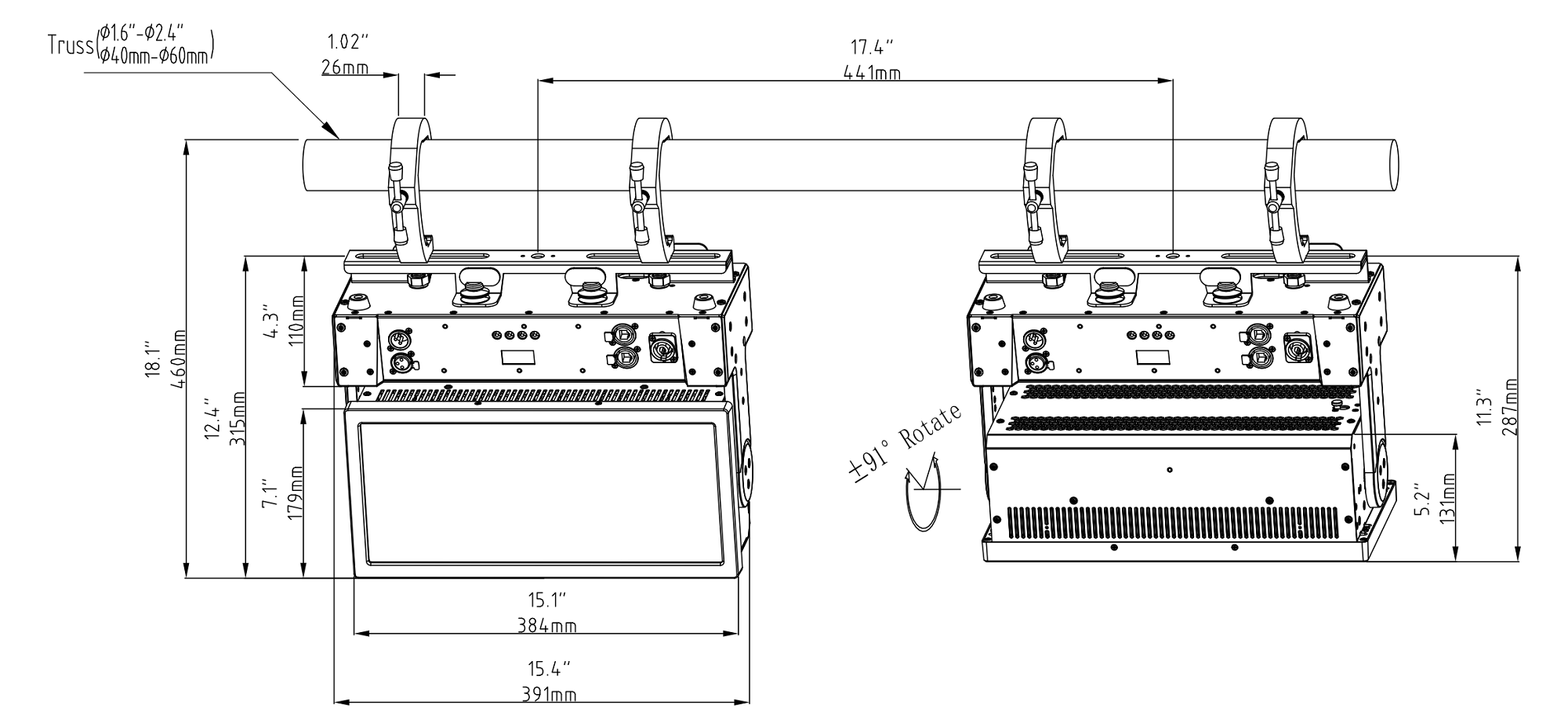

DIMENSIONS
990730220033 FINE 1200C STROBE Dimension drawing 2024-10-16_00

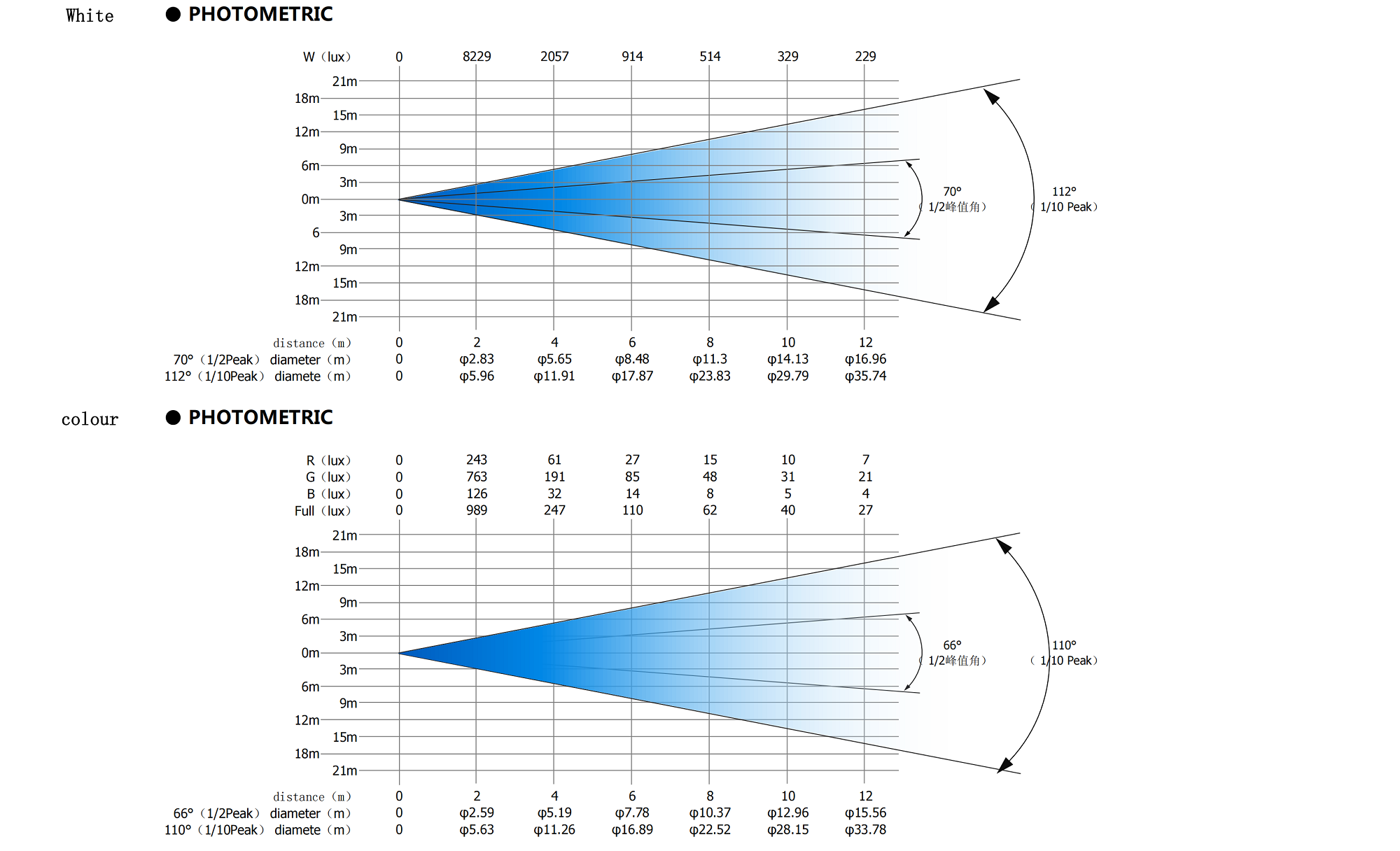

PHOTOMETRICS

FINE 1200C STROBE(英文版)_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 1200C STROBE (TEKMAND)2024
2024-12-27
icon
MA2
icon
FINE 1200C STROBE (MA2)
2024-12-27
icon
Avolites D4
icon
FINE 1200C STROBE(2020) (D4)
2024-12-27
icon
icon
FINE 1200C STROBE (D4)
2025-01-14
icon
MA3 (GDTF)
icon
FINE 1200C STROBE (MA3)
2024-12-27
icon
