32x optical zoom
convertible in the day and night (ICR)
32x optical zoom
convertible in the day and night (ICR)
Light source: 1500W five-color LED module (RGBLA)
Average Life expectancy: 20000h
CRI: Ra＞95,R9＞90,TLCI＞90
Beam angle: 5°~50°
Color temperature: 6250K±250K
Light source: 1500W five-color LED module (RGBLA)
Average Life expectancy: 20000h
CRI: Ra＞95,R9＞90,TLCI＞90
Beam angle: 5°~50°
Color temperature: 6250K±250K
CTO color temperature linear range 2500K- 8000K
Virtual color wheel: 1 color wheel with 6 color filters + white
CTO color temperature linear range 2500K- 8000K
Virtual color wheel: 1 color wheel with 6 color filters + white

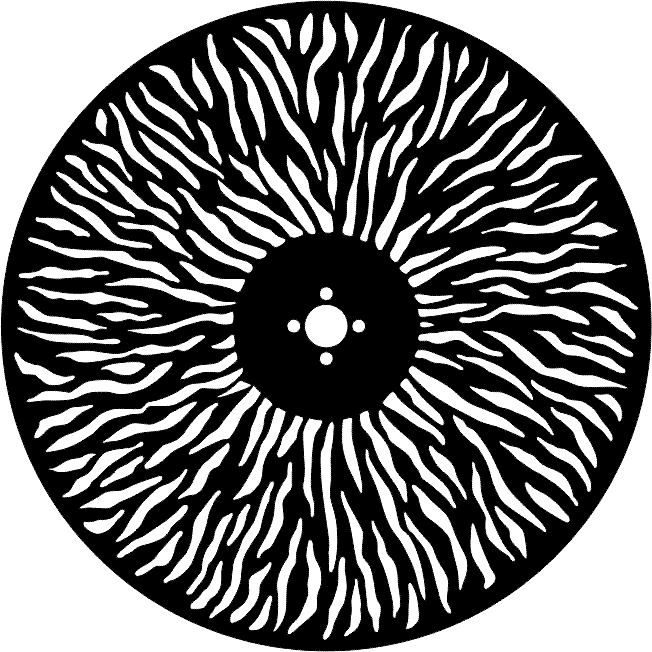

1 rotating gobo wheel, with 6 gobos filters(pluggable) +white
1 fixed gobo wheel, with 6 gobos filters +white
1 animation wheel
1 set of full directional framing system, cutting gobo ±90° rotation
1 rotating gobo wheel, with 6 gobos filters(pluggable) +white
1 fixed gobo wheel, with 6 gobos filters +white
1 animation wheel
1 set of full directional framing system, cutting gobo ±90° rotation
Dimmer: 0-100% linear dimmer
Soft light: 2pcs independent frosts, can be superimposed, linear adjustment
Strobe: Electric fast strobe frequency, multiple strobe effects (pulse/asynchronous/synchronous/ slow- medium-fast at random)
Prism: 1pc 4-facet rotating prism + 1 pc rotating 4-facet gradient prism, can be bidirectional rotation
Fast electric iris, 5-100% linear adjustment
Dimmer: 0-100% linear dimmer
Soft light: 2pcs independent frosts, can be superimposed, linear adjustment
Strobe: Electric fast strobe frequency, multiple strobe effects (pulse/asynchronous/synchronous/ slow- medium-fast at random)
Prism: 1pc 4-facet rotating prism + 1 pc rotating 4-facet gradient prism, can be bidirectional rotation
Fast electric iris, 5-100% linear adjustment
Pan 540°,16 bit control
Tilt 270°, 16 bit control
Magnetic encoder positioning system is used for pan & tilt
Pan 540°,16 bit control
Tilt 270°, 16 bit control
Magnetic encoder positioning system is used for pan & tilt
Channel control: 39(Standard)/ 48(16Bit)/ 55(Extend)
Protocol: DMX512/RDM, sACN, Art-net(optional)
Menu display: 3.5 inch black & white LCD display screen, Chinese and English language can be switched freely; font can be reversed 180° display; non-contact roller operation mode, Quick return key
Channel control: 39(Standard)/ 48(16Bit)/ 55(Extend)
Protocol: DMX512/RDM, sACN, Art-net(optional)
Menu display: 3.5 inch black & white LCD display screen, Chinese and English language can be switched freely; font can be reversed 180° display; non-contact roller operation mode, Quick return key
Built-in self-rechargeable battery, edit menu when there is no power
When the light is turned off, the power is automatically reduced, saving energy and environmental protection
Intelligent control of the fans
Heat dissipation system: Intelligent heat dissipation: The advanced and scientific thermal system design keeps the internal systems of the device within a reasonable working temperature range, which can extend the service life of the device and improve the reliability of the device
Electronic sensor detection
DMX channel level monitoring
The XY axis is driven by a three-phase motor, with smooth low-speed scanning and low noise
Query device information via display screen (power-on time, bulb usage time, fault information, etc.)
Electronic zoom function
RDM data bidirectional transmission function
The software upgrade device can be connected to the DMX port of the device to upgrade the software
Input signal isolation protection function
FINE ART CLOUD system
Built-in self-rechargeable battery, edit menu when there is no power
When the light is turned off, the power is automatically reduced, saving energy and environmental protection
Intelligent control of the fans
Heat dissipation system: Intelligent heat dissipation: The advanced and scientific thermal system design keeps the internal systems of the device within a reasonable working temperature range, which can extend the service life of the device and improve the reliability of the device
Electronic sensor detection
DMX channel level monitoring
The XY axis is driven by a three-phase motor, with smooth low-speed scanning and low noise
Query device information via display screen (power-on time, bulb usage time, fault information, etc.)
Electronic zoom function
RDM data bidirectional transmission function
The software upgrade device can be connected to the DMX port of the device to upgrade the software
Input signal isolation protection function
FINE ART CLOUD system
Input voltage: AC200-240V(AC100-240V optional), 50/60Hz
Input power: 1200W
PF≥0.98

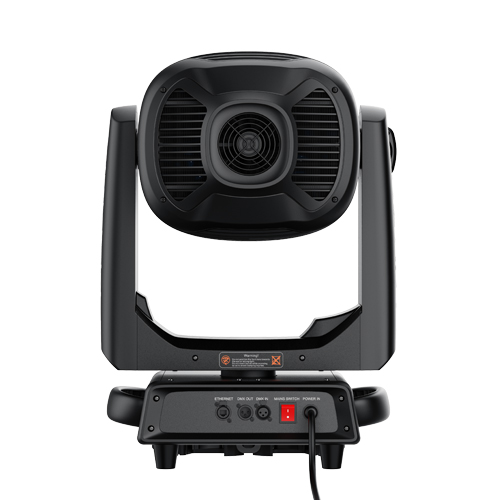

Signal input/output: 5-pin/3-pin XLR socket input/output
Input voltage: AC200-240V(AC100-240V optional), 50/60Hz
Input power: 1200W
PF≥0.98
Signal input/output: 5-pin/3-pin XLR socket input/output
Working temperature: -10°C ~40°C
Working temperature: -10°C ~40°C

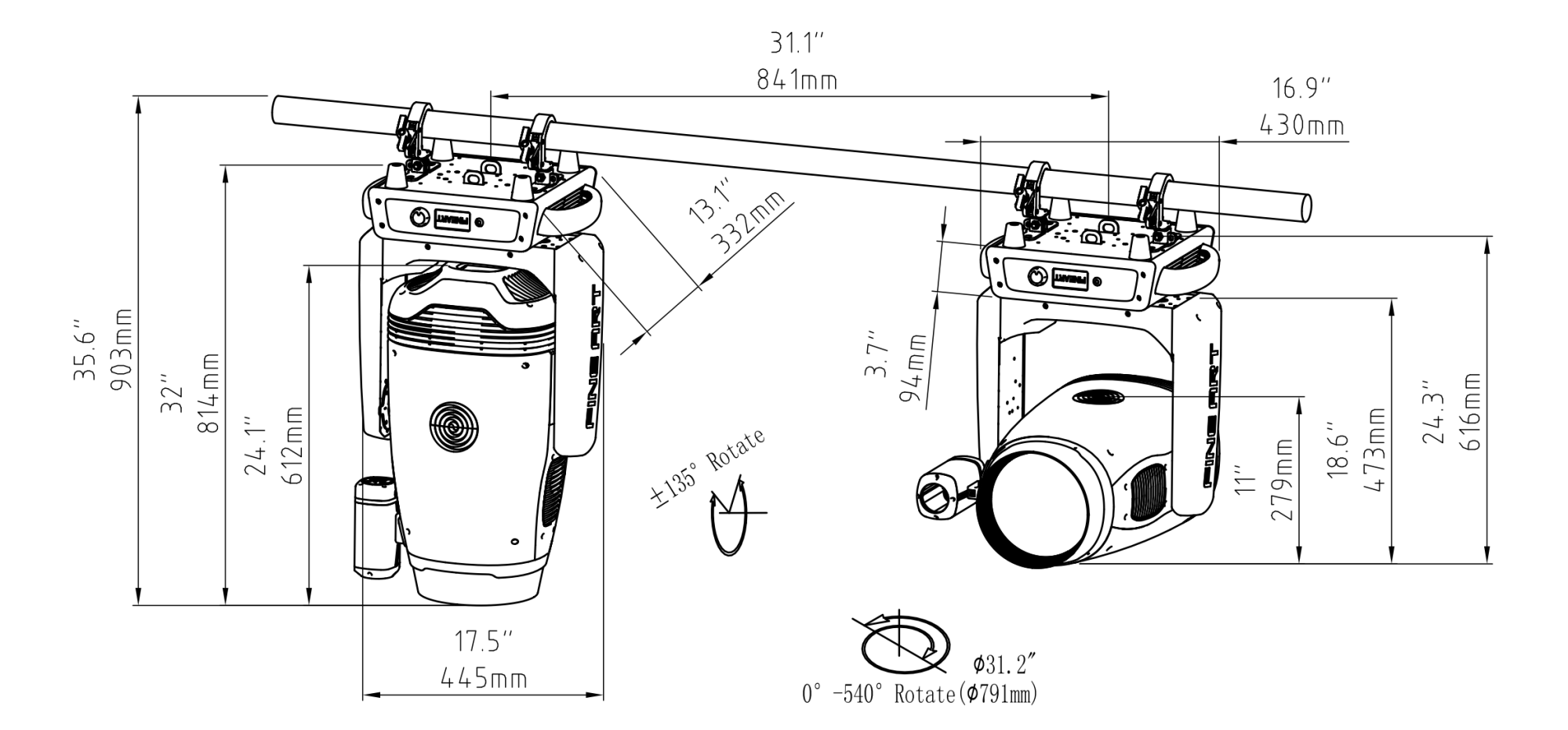

Fixture Dimension: 671 x 549 x 829mm
Package Dimension: 701 x 579 x 844mm
Net Weight: 47 kg (fixture)
Gross Weight: 84 kg (flight case)
Fixture Dimension: 671 x 549 x 829mm
Package Dimension: 701 x 579 x 844mm
Net Weight: 47 kg (fixture)
Gross Weight: 84 kg (flight case)
1 set / flight case
1 set /carton
1 set / flight case
1 set /carton
Horizontal or vertical installation, can be side-mounted

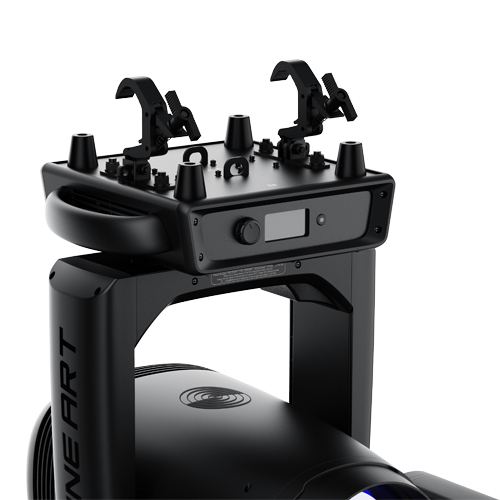

2 pcs folding clamps for φ40~60mm truss
Safety rope connection hole
Horizontal or vertical installation, can be side-mounted
2 pcs folding clamps for φ40~60mm truss
Safety rope connection hole
IP 20
IP 20
