FINE 800C STROBE PRO IP

OVERVIEW

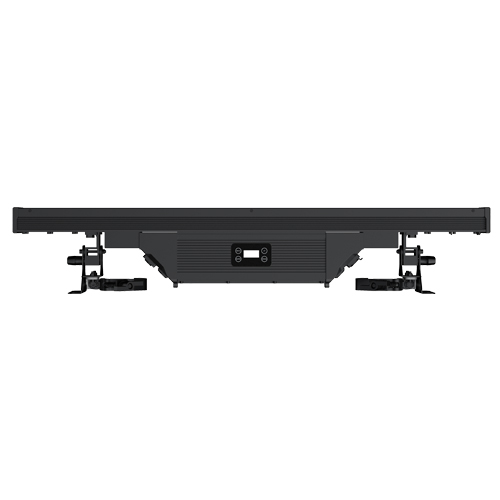

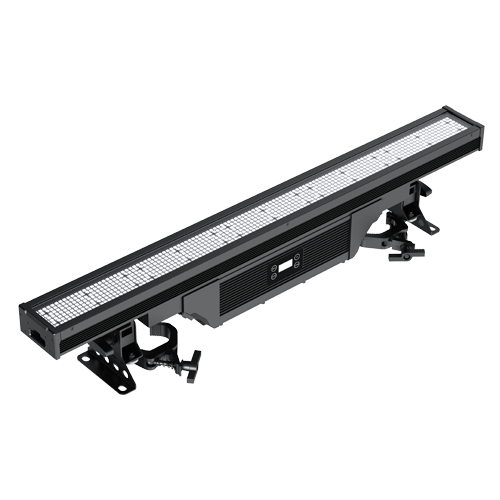

FINE 800C STROBE PRO IP is a multifunctional waterproof strip light. The product adopts a pixel array composed of 780pcs RGB LEDs, which provides background light that looks very similar to high-definition LED walls in appearance; The whole lights is composed of 15 grid sections, each of which can be independently controlled by RGBW and has pixel function; By introducing advanced electronic atomizer technology, the same effect as an atomizer can be easily achieved. Built in dual port switch, can be used for video projection, convenient for engineering wiring, and reduces DMX512 resources and operating costs; The lighting and dyeing are evenly distributed, and the lamp body is made of high-efficiency aluminum alloy for heat dissipation, ensuring that long-term use will not reduce power; IP65 protection level design, meeting the needs of outdoor all-weather use; Suitable for outdoor concerts, entertainment, rentals, and various live event.

TECHNICAL SPECIFICATION

LIGHT SOURCE

Light source: R:240x0.5W G:240x0.5W B:240x0.5W W:60x3W
Life expectancy: 50000h

Light source: R:240x0.5W G:240x0.5W B:240x0.5W W:60x3W
Life expectancy: 50000h

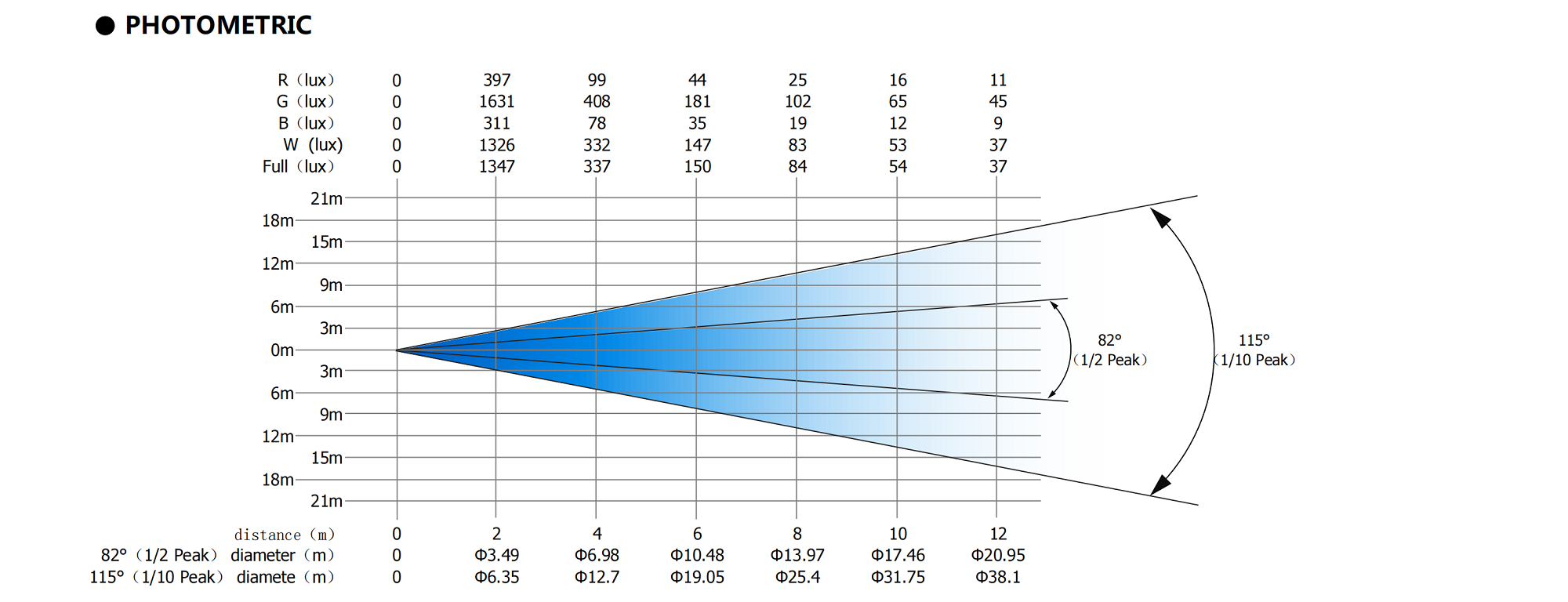

OPTICAL SYSTEM

Beam Angle: 115?
Color temperature: 2500~10000K

Beam Angle: 115?
Color temperature: 2500~10000K

EFFECTS

Strobe: Quick strobe with multiple strobe modes to choose from, pulse, lightning, random slow, medium, and fast, professional strobe mode, adjustable light output time and frequency
Electrically controlled smart glass technology

Strobe: Quick strobe with multiple strobe modes to choose from, pulse, lightning, random slow, medium, and fast, professional strobe mode, adjustable light output time and frequency
Electrically controlled smart glass technology

CONTROL AND PROGRAMMING

Stand22/Pixels66/Strobe12/Pix6+60 four channel control modes
Communication protocol: Standard DMX512/ RDM protocol, Art-net Ethernet lighting control protocol
Menu display: 1.3-inch OLED (LCD/OLED/ display); switchable between Chinese/ English language, rotated 180° degrees for display, no-touch button operation

Stand22/Pixels66/Strobe12/Pix6+60 four channel control modes
Communication protocol: Standard DMX512/ RDM protocol, Art-net Ethernet lighting control protocol
Menu display: 1.3-inch OLED (LCD/OLED/ display); switchable between Chinese/ English language, rotated 180° degrees for display, no-touch button operation

ELECTRONIC CONTROL TECHNOLOGY

Constant current driveFan intelligent control
Cooling system: active cooling (forced cooling), passive cooling (natural air cooling)
Electronic sensor detection
DMX channel level monitoring
Query lamp information, bulb usage time and fault information through the display screen
With RDM data two-way transmission function
Change the DMX address code, switch the light bulb, reset the machine, and switch modes from the console
The software upgrade device can be connected to the DMX port of the lamp to upgrade the software
Input signal isolation protection functionElectronic atomization function

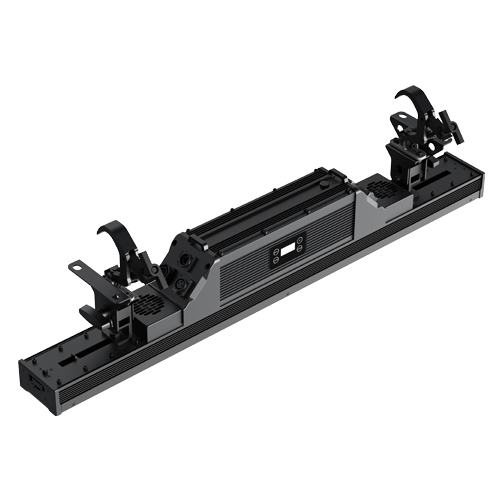

The hook-type integrated folding light hook is convenient for transportation and hanging assembly operations, improving efficiency, safety and reliability

Constant current driveFan intelligent control
Cooling system: active cooling (forced cooling), passive cooling (natural air cooling)
Electronic sensor detection
DMX channel level monitoring
Query lamp information, bulb usage time and fault information through the display screen
With RDM data two-way transmission function
Change the DMX address code, switch the light bulb, reset the machine, and switch modes from the console
The software upgrade device can be connected to the DMX port of the lamp to upgrade the software
Input signal isolation protection functionElectronic atomization function
The hook-type integrated folding light hook is convenient for transportation and hanging assembly operations, improving efficiency, safety and reliability
