Input voltage: three-phase five-wire system AC380V±10%, frequency 50/60Hz
Output voltage: 4 channels of three-phase five-wire AC380V (PDU power supply), 2 channels of three-phase four-wire AC380V (standby power supply), 2 channels of single-phase AC220V (standby power supply)
Input total circuit breaker: 250A (three-phase)
Grounding: The back panel of the chassis is equipped with reliable grounding bolts
Insulation resistance: >2MΩ/1000VDC
Overall dimensions: 530 x 680 x 659mm
Weight: 60 kg
Input voltage: three-phase five-wire system AC380V±10%, frequency 50/60Hz
Output voltage: 4 channels of three-phase five-wire AC380V (PDU power supply), 2 channels of three-phase four-wire AC380V (standby power supply), 2 channels of single-phase AC220V (standby power supply)
Input total circuit breaker: 250A (three-phase)
Grounding: The back panel of the chassis is equipped with reliable grounding bolts
Insulation resistance: >2MΩ/1000VDC
Overall dimensions: 530 x 680 x 659mm
Weight: 60 kg

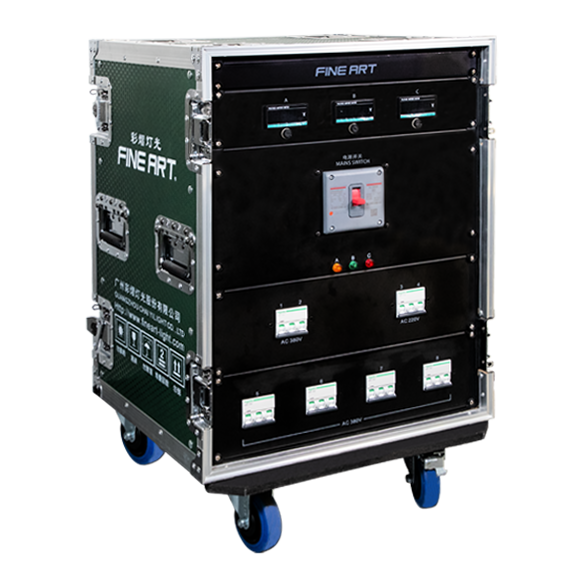

Beautiful, elegant and maneuverable portable flight case design
Three-phase independent voltage display meter, three-phase A.B.C light indication
Each channel has independent circuit breaker control output
● Self-locking and over-current, staggered zero-fire rhino plug power supply
400A rhinoceros power supply, of which A, B and C are called male sockets, the colors are yellow, green and red, the neutral line and protective ground are female sockets, the colors are blue and black respectively
Passed international CE certification
Beautiful, elegant and maneuverable portable flight case design
Three-phase independent voltage display meter, three-phase A.B.C light indication
Each channel has independent circuit breaker control output
● Self-locking and over-current, staggered zero-fire rhino plug power supply
400A rhinoceros power supply, of which A, B and C are called male sockets, the colors are yellow, green and red, the neutral line and protective ground are female sockets, the colors are blue and black respectively
Passed international CE certification
Ambient temperature: 0℃～+45℃
Relative humidity: +40%～+80%
Atmospheric pressure: 0.8~1.6 standard atmosphere
Working environment: well ventilated, without a lot of smoke and dust
Ambient temperature: 0℃～+45℃
Relative humidity: +40%～+80%
Atmospheric pressure: 0.8~1.6 standard atmosphere
Working environment: well ventilated, without a lot of smoke and dust
