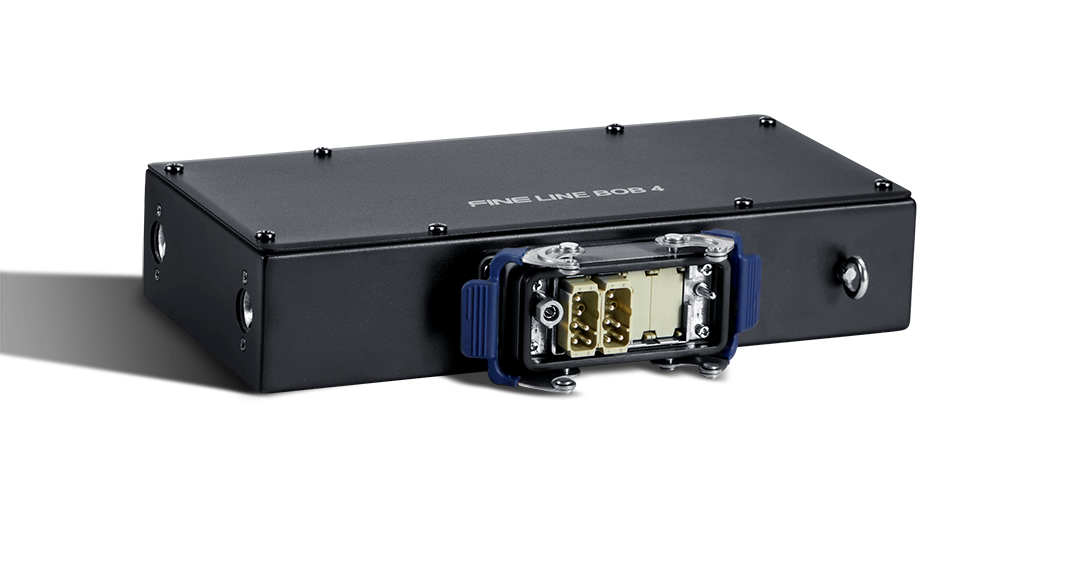

FINE DAX BOB 4
OVERVIEW
FINE DAX BOB 4 (Breakout Box), also known as a distribution box, is used to transmit power to the power interface on the VSC (axis controller) by connecting the power supply provided by the PDU. One BOB (breakout box) can provide power for 4 CNC hoists. The power supply provides stable and multi-line power output for FINE DAX products.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
Input voltage: 3P/380V
Output voltage: 3P/380V
Rated power: 12KW (3KW x 4 circuits)
Input port: 1 way
Output port: 4 channels
Input voltage: 3P/380V
Output voltage: 3P/380V
Rated power: 12KW (3KW x 4 circuits)
Input port: 1 way
Output port: 4 channels
Product size: 320 x 233 x 85
Weight: 4 kg
Product size: 320 x 233 x 85
Weight: 4 kg
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
Drawings
FINE DAX BOB 4 CAD Drawings
2024-09-23
