Input: three-phase five-wire AC380V±10%, frequency 50/60Hz
Output: 4 groups x 4 channels, 16 three-phase AC380V/10A, 4 single-phase AC220V/10A
Support 10/100/1000M Ethernet communication and optical fiber
Supports up to 768 ethernet type IAC drives
Supports 24 ethernet switch interfaces, each supporting 32 ethernet type IAC drivers
Supports remote emergency stop and emergency stop link expansion functions, and supports category 0 and category 1 emergency stops.
Each output is independently controlled by a 10A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
The input is independently controlled by a 63A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
Panel with working and emergency stop light indicators
Input: three-phase five-wire AC380V±10%, frequency 50/60Hz
Output: 4 groups x 4 channels, 16 three-phase AC380V/10A, 4 single-phase AC220V/10A
Support 10/100/1000M Ethernet communication and optical fiber
Supports up to 768 ethernet type IAC drives
Supports 24 ethernet switch interfaces, each supporting 32 ethernet type IAC drivers
Supports remote emergency stop and emergency stop link expansion functions, and supports category 0 and category 1 emergency stops.
Each output is independently controlled by a 10A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
The input is independently controlled by a 63A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
Panel with working and emergency stop light indicators

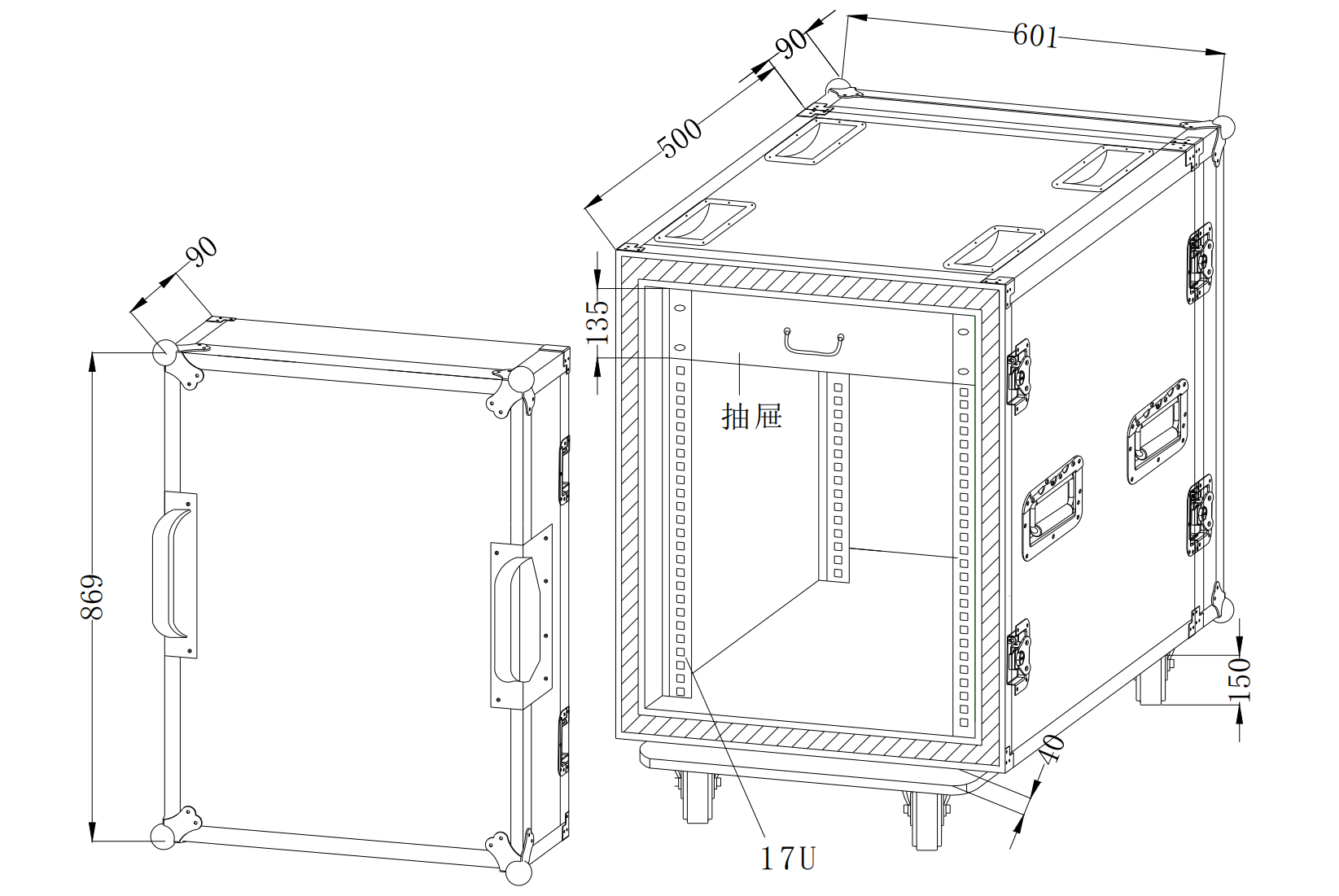

Dimensions: 530 x 680 x 659(mm)
Dimensions: 530 x 680 x 659(mm)
Ambient temperature: 0℃～+45℃
Relative humidity: +40%～+80%
Atmospheric pressure: 0.8~1.6 standard atmosphere
Working environment: well ventilated, without a lot of smoke and dus
Ambient temperature: 0℃～+45℃
Relative humidity: +40%～+80%
Atmospheric pressure: 0.8~1.6 standard atmosphere
Working environment: well ventilated, without a lot of smoke and dus
