FINE DAX PD-ES CNC system cabinet (1 to 8)

OVERVIEW

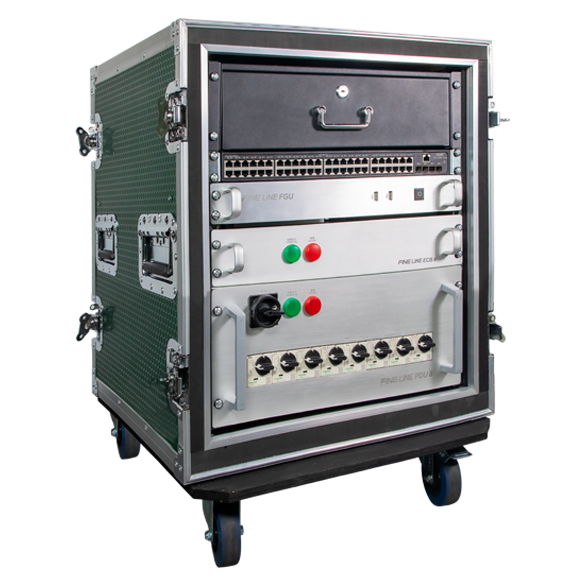

FINE DAX PD-ES (Power Distribution-Emergency Stop) CNC system cabinet (1 to 8) uses 1 PDU 8 power distribution unit, 1 ECB emergency stop combiner and 1 network switch. Supports 10/100/1000M Ethernet communication and optical fiber communication; supports remote emergency stop and emergency stop link expansion functions. Each power distribution unit provides 2 sets of outputs. Each set provides 4 channels of 10A three-phase power. Each output is independently controlled by a thermal magnetic circuit breaker. It has multiple protection functions of overcurrent, short circuit and overheating, and provides power distribution for the stage CNC mechanical system. and communication control, suitable for fixed installation and mobile performance venues.

TECHNICAL SPECIFICATION

Function parameters

Input: three-phase five-wire AC380V±10%, frequency 50/60Hz
Output: 2 groups × 4 channels, 8 three-phase AC380V/10A, 2 single-phase AC220V/10A
Supports 10/100/1000M Ethernet communication and optical fiber
Supports up to 768 ethernet type IAC drives
Supports 24 ethernet switch interfaces, each supporting 32 ethernet type IAC drivers
Supports remote emergency stop and emergency stop link expansion functions, and supports category 0 and category 1 emergency stops
Each output is independently controlled by a 10A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
The input is independently controlled by a 63A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
Panel with working and emergency stop light indicators

Input: three-phase five-wire AC380V±10%, frequency 50/60Hz
Output: 2 groups × 4 channels, 8 three-phase AC380V/10A, 2 single-phase AC220V/10A
Supports 10/100/1000M Ethernet communication and optical fiber
Supports up to 768 ethernet type IAC drives
Supports 24 ethernet switch interfaces, each supporting 32 ethernet type IAC drivers
Supports remote emergency stop and emergency stop link expansion functions, and supports category 0 and category 1 emergency stops
Each output is independently controlled by a 10A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
The input is independently controlled by a 63A thermal magnetic circuit breaker (with multiple protection functions of overcurrent, short circuit and overheating)
Panel with working and emergency stop light indicators
