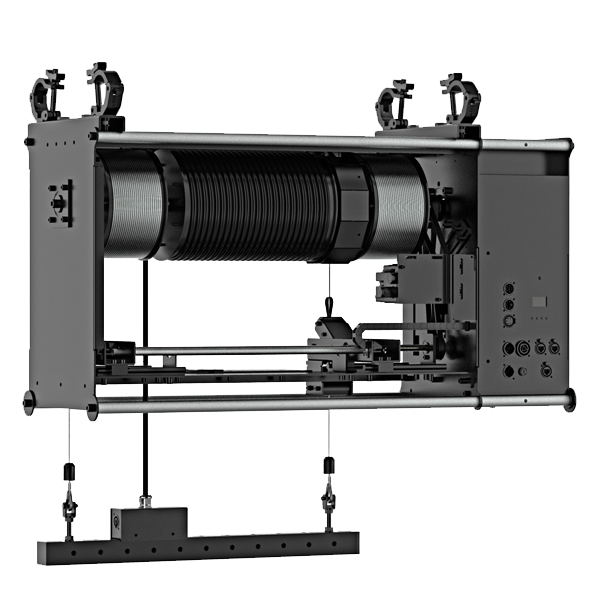

CNC dual-line boom, capable of eliminating swing and rotation during movement
High-precision positioning system
Adjustable physical limit
Supports power and signal cascading installation
CNC dual-line boom, capable of eliminating swing and rotation during movement
High-precision positioning system
Adjustable physical limit
Supports power and signal cascading installation
Rated load: 50kg (110.2 lb)
Lifting height: 12.5m (41 ft)
Movement speed: 9-45 cm/s (3.5-17.7 in/s)
Voltage range: 208-240 VAC
Power Output1: 250VAC/13A, POWERCON SAC3FPX-20
Power Output2: 250VAC/10A, POWERCON SAC3FPX-20（Load End of the Cable）
Frequency: 50-60 Hz
Motor: 230 VAC, 0.55 KW
Minimum load：3.5kg (7.72 lb)
Braking method: Utilizes a wide voltage range (220-380VAC)single electromagnetic brake, with power-offbraking and integrated designe
Operational duty cycle: It is recommended to rest for 10~15 minutes after more than 30 minutes of operation
Rated load: 50kg (110.2 lb)
Lifting height: 12.5m (41 ft)
Movement speed: 9-45 cm/s (3.5-17.7 in/s)
Voltage range: 208-240 VAC
Power Output1: 250VAC/13A, POWERCON SAC3FPX-20
Power Output2: 250VAC/10A, POWERCON SAC3FPX-20（Load End of the Cable）
Frequency: 50-60 Hz
Motor: 230 VAC, 0.55 KW
Minimum load：3.5kg (7.72 lb)
Braking method: Utilizes a wide voltage range (220-380VAC)single electromagnetic brake, with power-offbraking and integrated designe
Operational duty cycle: It is recommended to rest for 10~15 minutes after more than 30 minutes of operation
Power input: 1×3-core Neutrik
Power output: 1×3-core Neutrik
Emergency stop input: 1×4-core XLR
Communication interface: DMX512
Number of channels: 8
Communication Protocols: DMX 512/RDM/Art-net
Power input: 1×3-core Neutrik
Power output: 1×3-core Neutrik
Emergency stop input: 1×4-core XLR
Communication interface: DMX512
Number of channels: 8
Communication Protocols: DMX 512/RDM/Art-net
- Linear position error: ≤±5mm
Display screen: Switchable between Chinese and English, 1.3-inch OLED display/128*64 dot matrix
Installation method: Vertical hook installation
Packaging method: One per flight case
Dimensions (L*W*H): 933mm x 591mm x 357mm
Weight: 54.5 kg
IP RATE: IP20
- Linear position error: ≤±5mm
Display screen: Switchable between Chinese and English, 1.3-inch OLED display/128*64 dot matrix
Installation method: Vertical hook installation
Packaging method: One per flight case
Dimensions (L*W*H): 933mm x 591mm x 357mm
Weight: 54.5 kg
IP RATE: IP20
