Resolution: 1920 x 1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
32x digital zoom
Vision: day and night conversion (ICR), wide dynamic range (120dB), defogging
Minimum illumination: 0.05lux
Resolution: 1920 x 1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
32x digital zoom
Vision: day and night conversion (ICR), wide dynamic range (120dB), defogging
Minimum illumination: 0.05lux
Horizontal 540°, accuracy 2.11°/step, fine adjustment accuracy 0.008°
Vertical 250°, accuracy 1.05°/step, fine adjustment accuracy 0.004°
Horizontal and vertical positioning using magnetic rotary encoders
Horizontal 540°, accuracy 2.11°/step, fine adjustment accuracy 0.008°
Vertical 250°, accuracy 1.05°/step, fine adjustment accuracy 0.004°
Horizontal and vertical positioning using magnetic rotary encoders
Control channel: 8-channel control mode
Control protocol: standard DMX512 protocol, Art-net Ethernet lighting control protocol and wireless DMX512 control (optional)
Menu display: 1.3-inch OLED screen, resolution 128 × 64
Chinese and English languages can be switched at will, fonts can be reversed 180° for display
button operation mode
Control channel: 8-channel control mode
Control protocol: standard DMX512 protocol, Art-net Ethernet lighting control protocol and wireless DMX512 control (optional)
Menu display: 1.3-inch OLED screen, resolution 128 × 64
Chinese and English languages can be switched at will, fonts can be reversed 180° for display
button operation mode
Fan intelligent control
Temperature electronic sensing detection
DMX channel level monitoring
Screen lighting information query
RDM data bidirectional transmission
Signal feedback, absolute position memory, DMX offline power-off position recovery
Fan intelligent control
Temperature electronic sensing detection
DMX channel level monitoring
Screen lighting information query
RDM data bidirectional transmission
Signal feedback, absolute position memory, DMX offline power-off position recovery
Input voltage: 100-240V~, 50/60Hz
Rated power: 25W
Fiber port: single-mode LC fiber x 1
Ethernet port: RJ45 x 3 (Video/PSN)
ArtNet port: RJ45 x 1 working environment
Input voltage: 100-240V~, 50/60Hz
Rated power: 25W
Fiber port: single-mode LC fiber x 1
Ethernet port: RJ45 x 3 (Video/PSN)
ArtNet port: RJ45 x 1 working environment

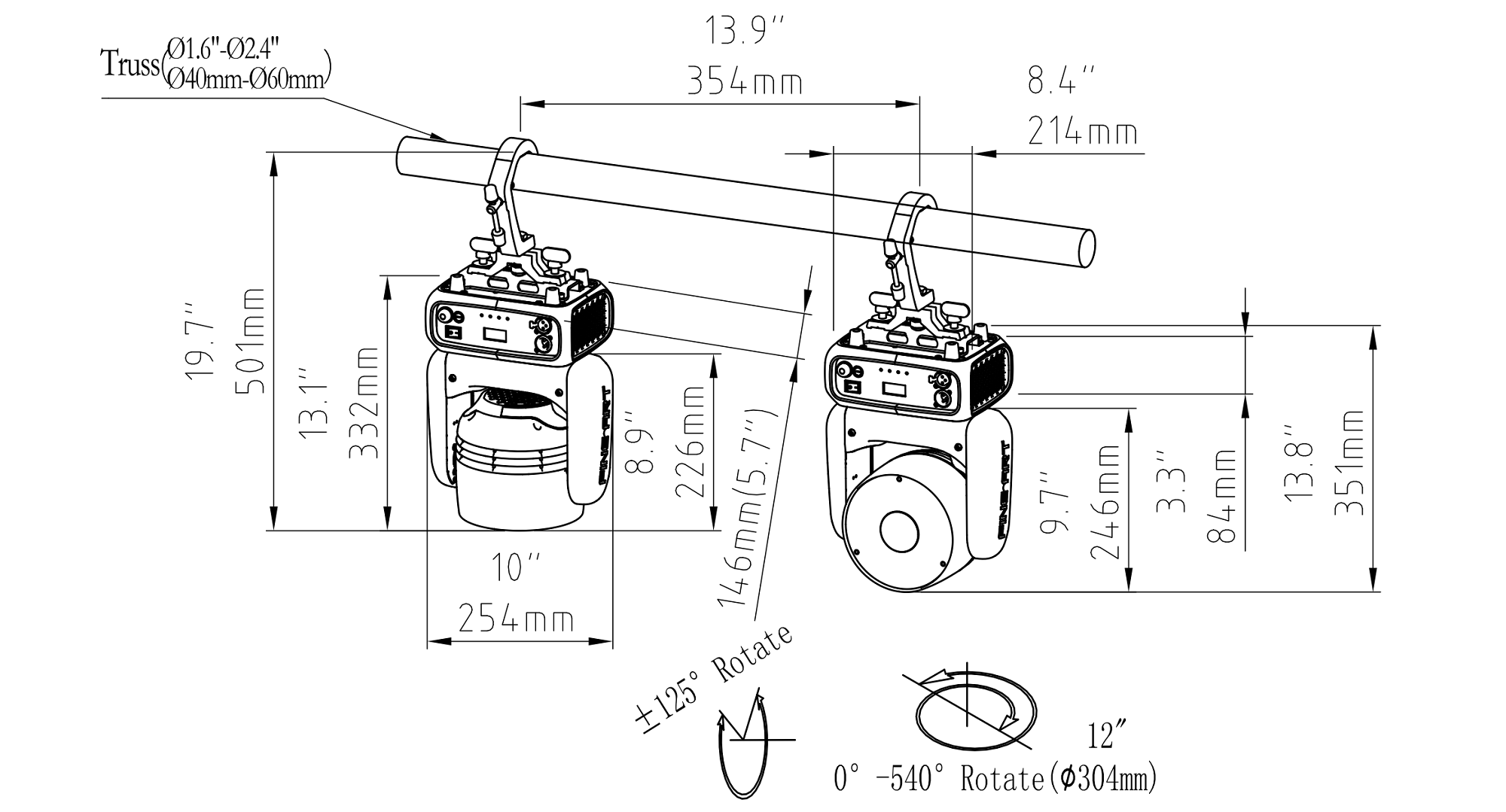

Product size: 332 x 254 x 172mm
Packing size: 1154 x 534 x 664(92+422+150)mm (including casters)
Net weight: 5.5 kg
Gross weight: 93 kg
Product size: 332 x 254 x 172mm
Packing size: 1154 x 534 x 664(92+422+150)mm (including casters)
Net weight: 5.5 kg
Gross weight: 93 kg
8 sets / flight case
8 sets / flight case
IP 20
IP 20
