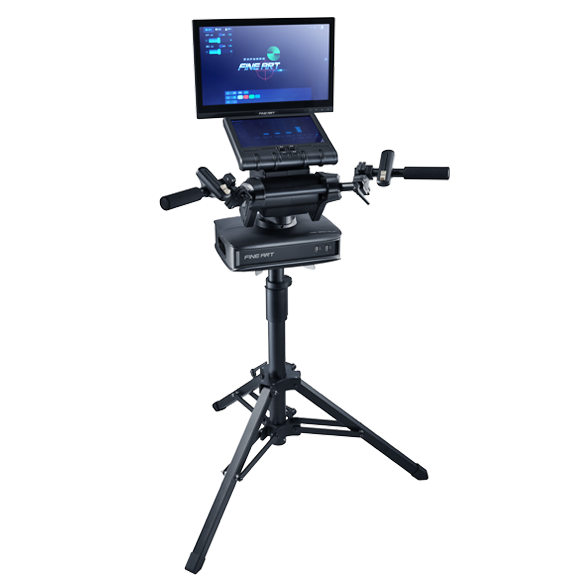

FINE iSPOT PILOT

OVERVIEW

FINE iSPOT PILOT ground follow system solves the problems of traditional follow spot operation. For venues such as sports stadiums, theaters, concert halls, and TV studios, where high-altitude operations or limited space are required, it allows easy control of multiple follow spot lights from the ground. This system effortlessly achieves effects that traditional follow spot lights cannot accomplish, thereby reducing equipment installation time and operating costs.

TECHNICAL SPECIFICATION

FEATURES

Remote light tracking technology
Long distance, fiber optic cabling, low latency
Real-time tracking cursor and target cursor
Support import/export light library, show files

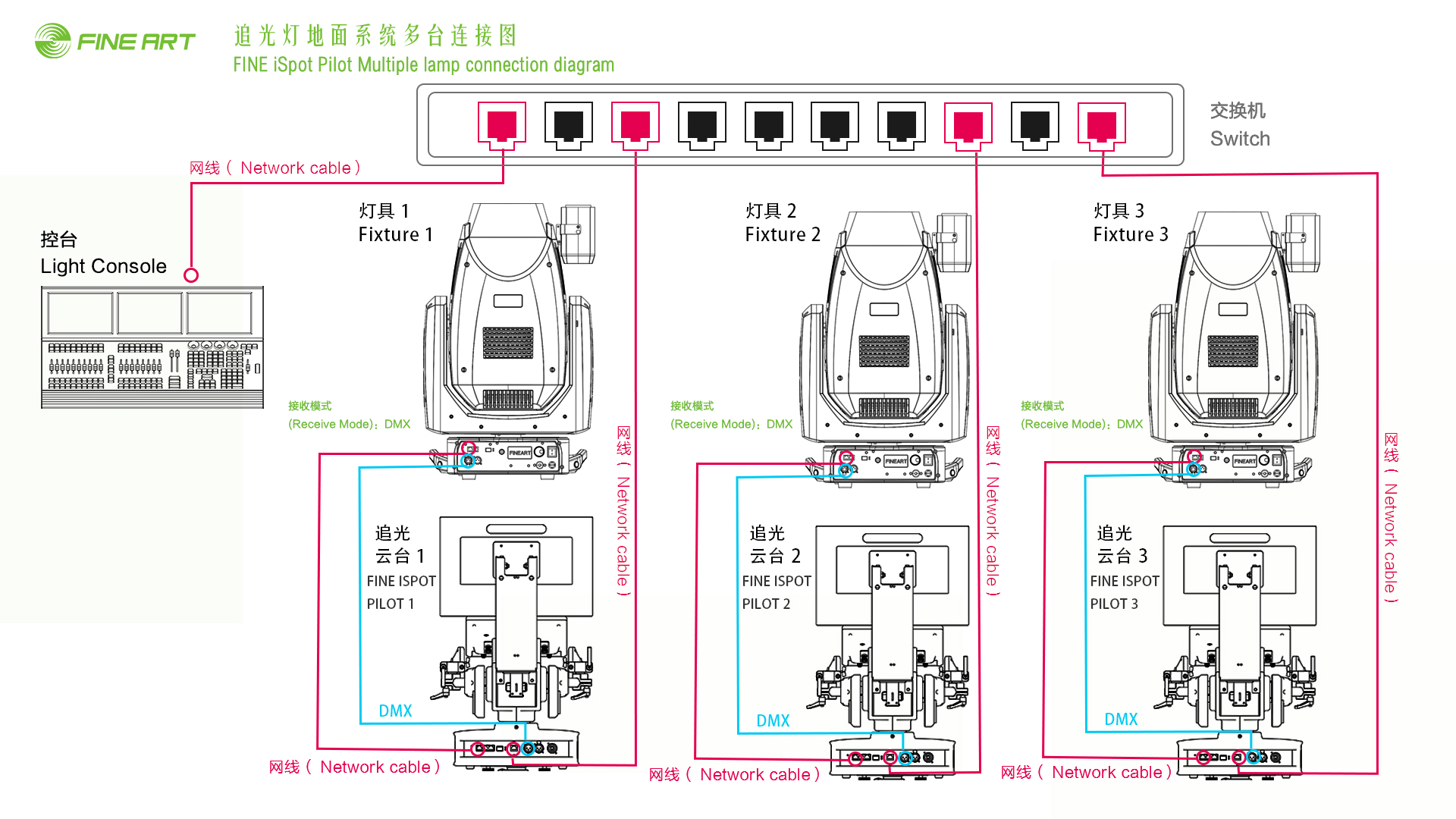

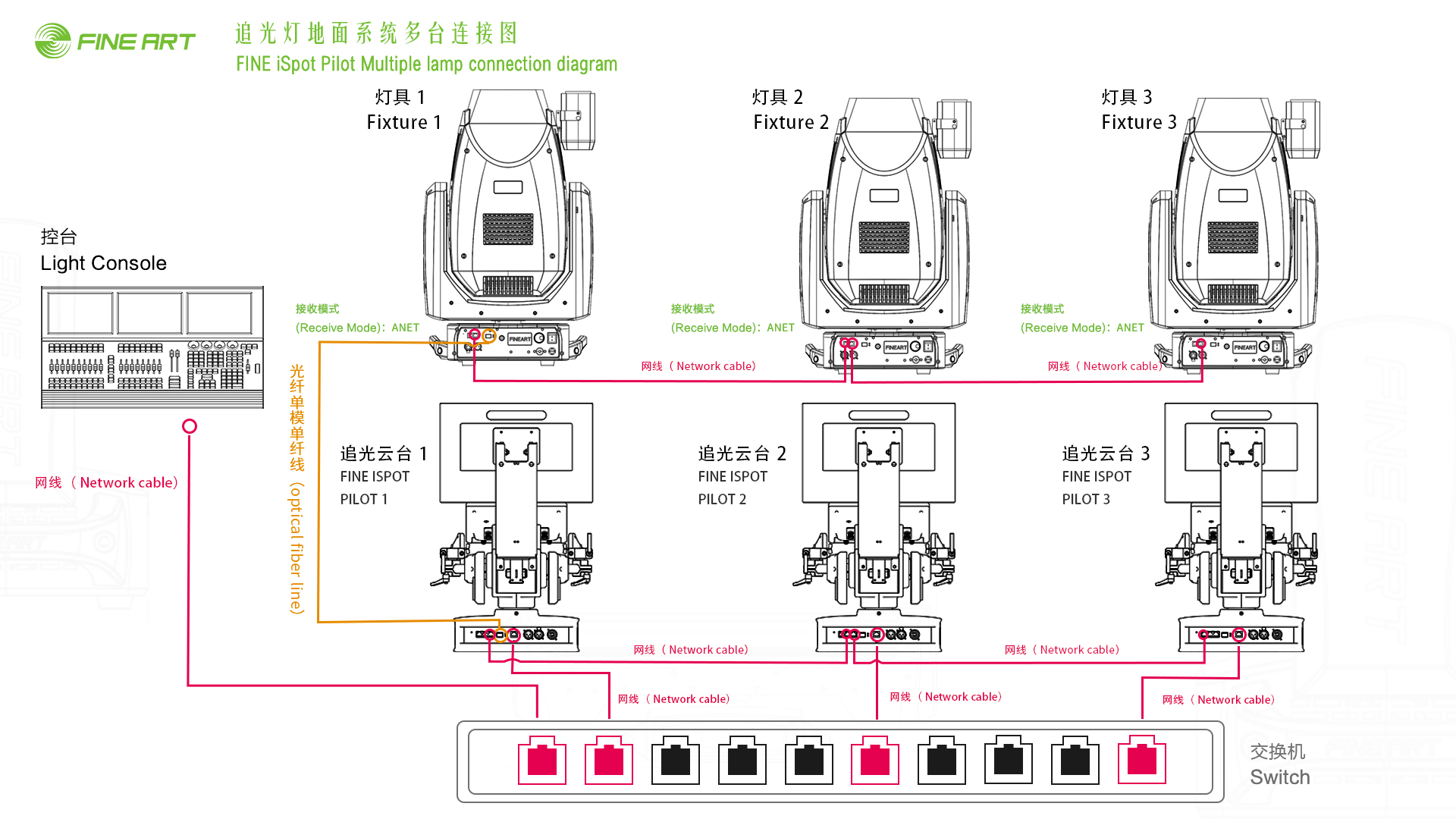

Multi-device control, can support 12 devices to track the same target

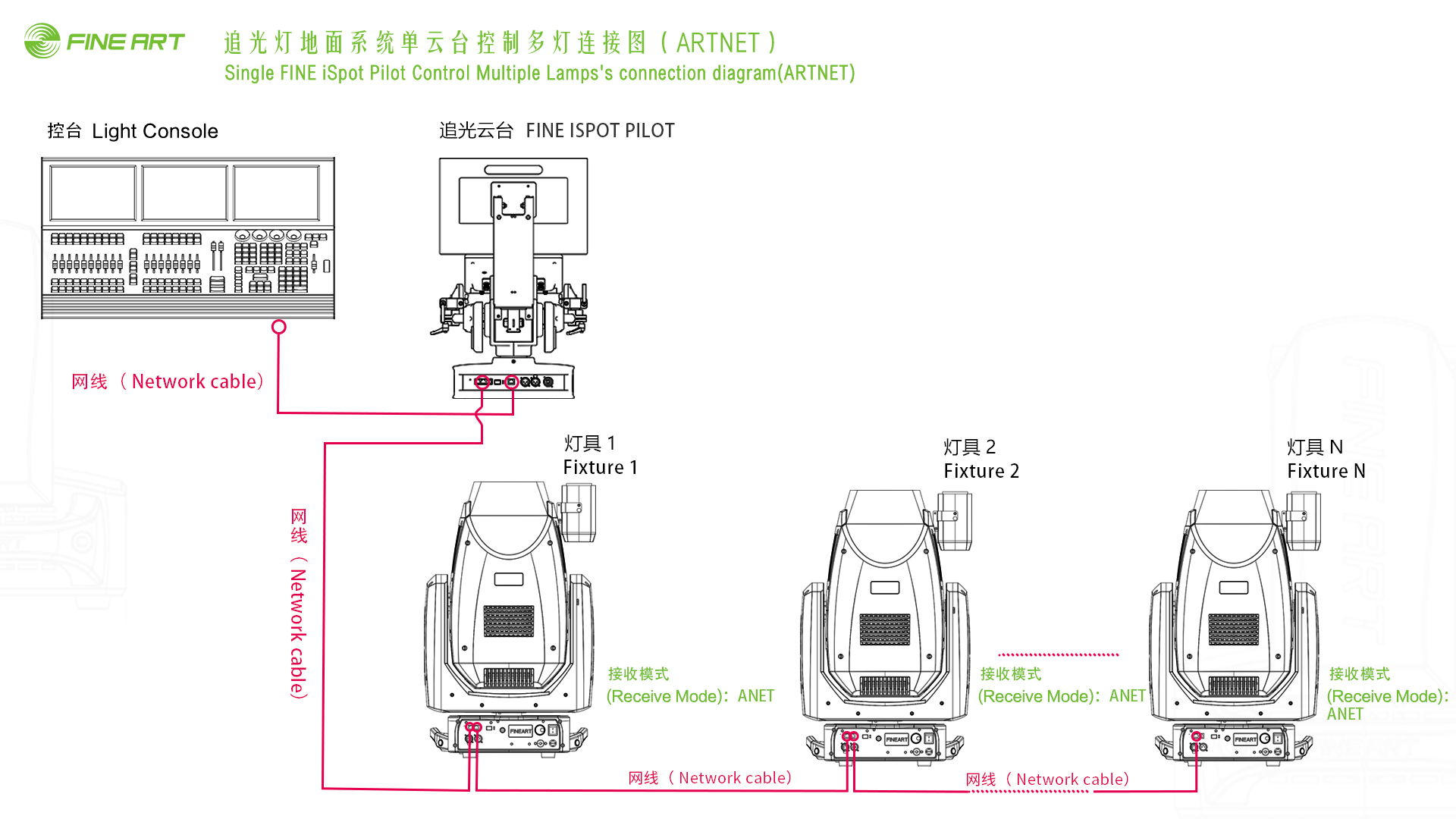

Support ART-Net to connect to Tekmand, MA and other consoles to control the function of tracking equipment
Support PosiStageNet (PSN) protocol
Multi-light height mode, realize the height of the light spot can be adjusted freely when encountering stairs
The storage of color material and position material under multi-device is independent from that of single light
Technical lamps: FINE1700LH iSPOT\ FINE1400LH iSPOT\ FINE2000LH iSPOT and FINE iSPOT EYE+ arbitrary moving head lights

Remote light tracking technology
Long distance, fiber optic cabling, low latency
Real-time tracking cursor and target cursor
Support import/export light library, show files
Multi-device control, can support 12 devices to track the same target
Support ART-Net to connect to Tekmand, MA and other consoles to control the function of tracking equipment
Support PosiStageNet (PSN) protocol
Multi-light height mode, realize the height of the light spot can be adjusted freely when encountering stairs
The storage of color material and position material under multi-device is independent from that of single light
Technical lamps: FINE1700LH iSPOT\ FINE1400LH iSPOT\ FINE2000LH iSPOT and FINE iSPOT EYE+ arbitrary moving head lights

SHAKE PARAMETERS

X-axis movement range: -80~80°
Y-axis movement range: -40~40°

X-axis movement range: -80~80°
Y-axis movement range: -40~40°

CONTROL AND PROGRAMMING

Tracking Control: Manual
Touch input; 15.6-inch, 10.1-inch capacitive touch screen human-computer interaction
4 physical command buttons
4-way custom encoder
2-way entity attribute adjustment push rod L=60mm
Support PosiStageNet (PSN), Art-net, RDM, DMX512 protocols

Tracking Control: Manual
Touch input; 15.6-inch, 10.1-inch capacitive touch screen human-computer interaction
4 physical command buttons
4-way custom encoder
2-way entity attribute adjustment push rod L=60mm
Support PosiStageNet (PSN), Art-net, RDM, DMX512 protocols

ELECTRONIC CONTROL TECHNOLOGY

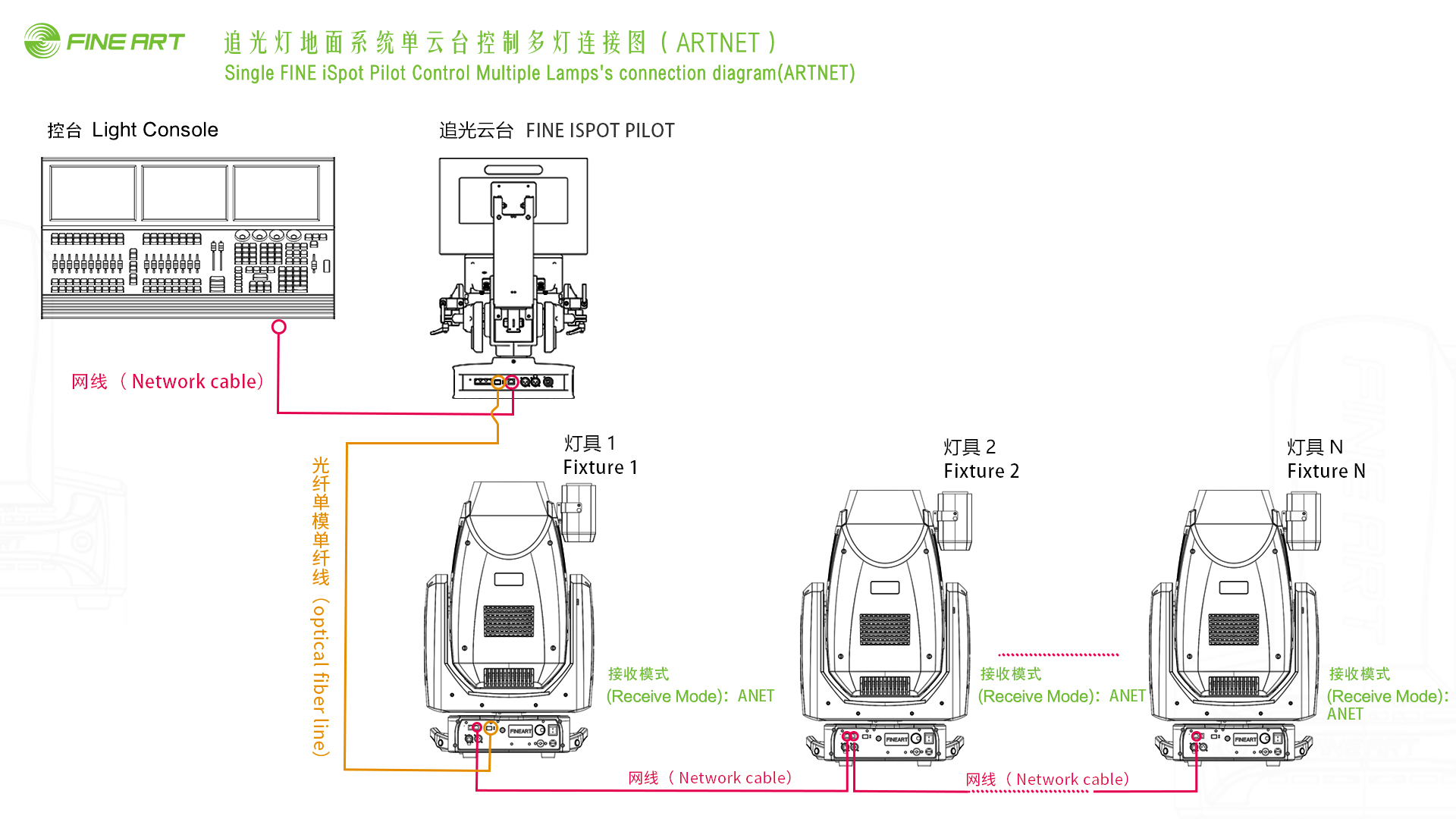

Optical fiber communication technology, communication distance, low delay;
Support USB system software upgrade;Support ART-Net to connect Tekmand, MA and other lighting consoles for collaborative operation;16-bit industrial-grade encoder, accurate and reliable positioning

Optical fiber communication technology, communication distance, low delay;
Support USB system software upgrade;Support ART-Net to connect Tekmand, MA and other lighting consoles for collaborative operation;16-bit industrial-grade encoder, accurate and reliable positioning

ELECTRICAL AND INTERFACE
